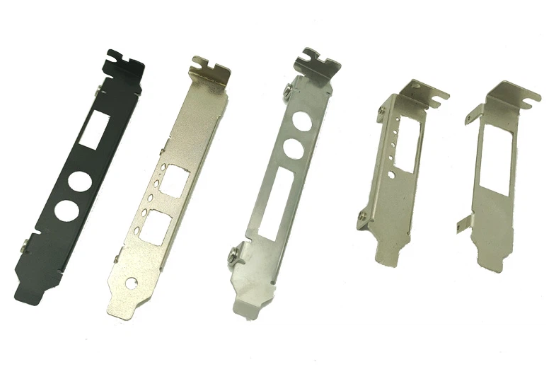

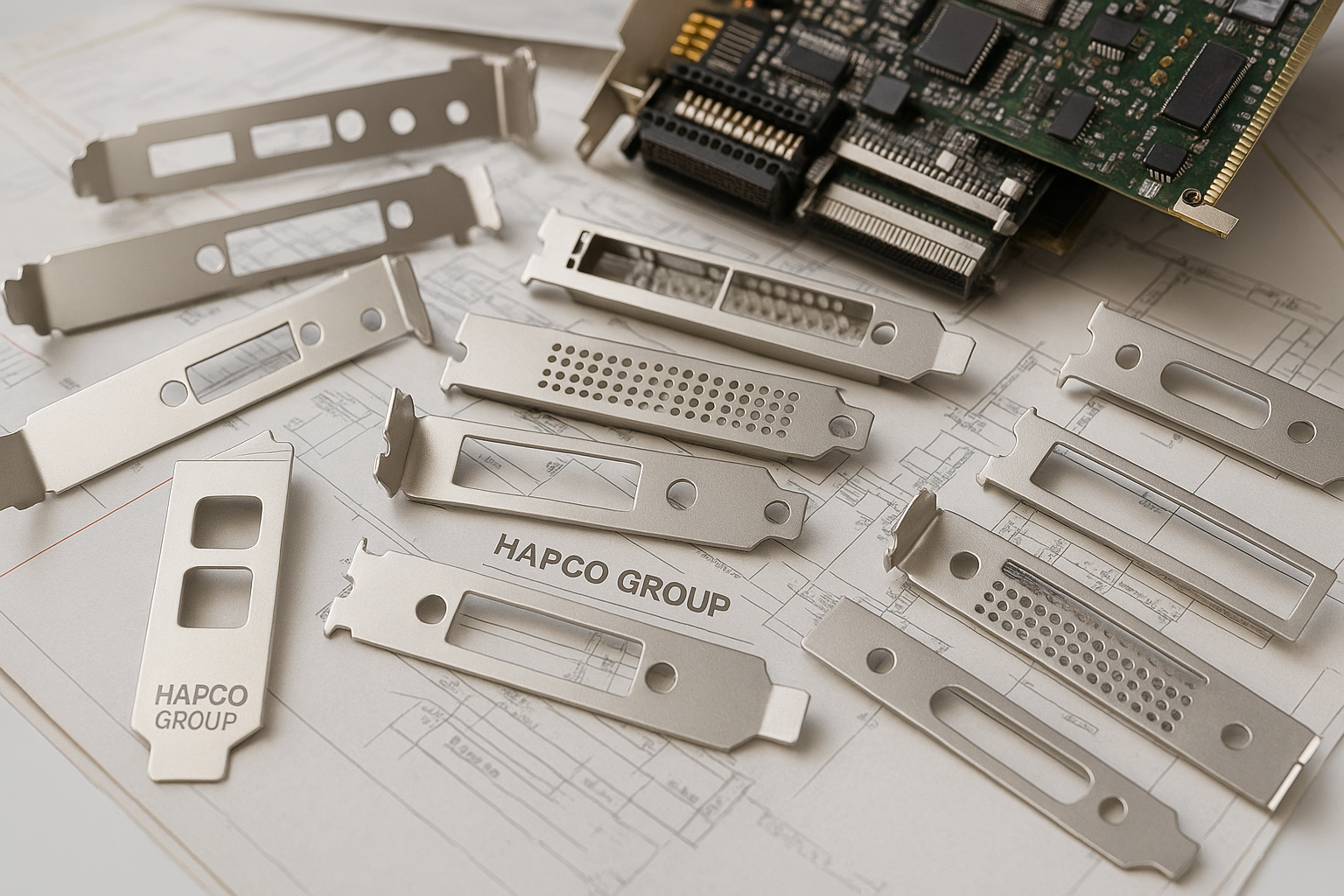

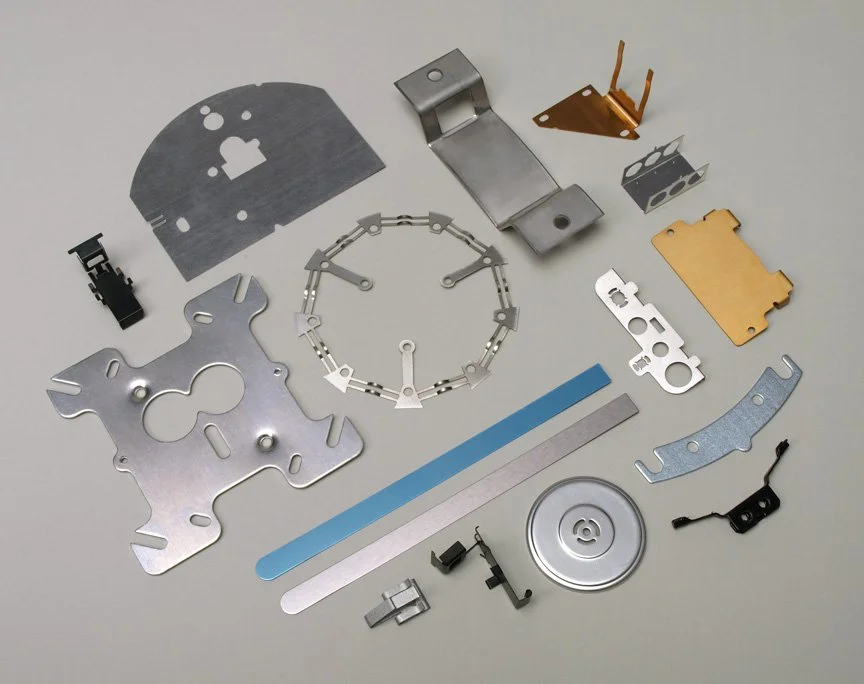

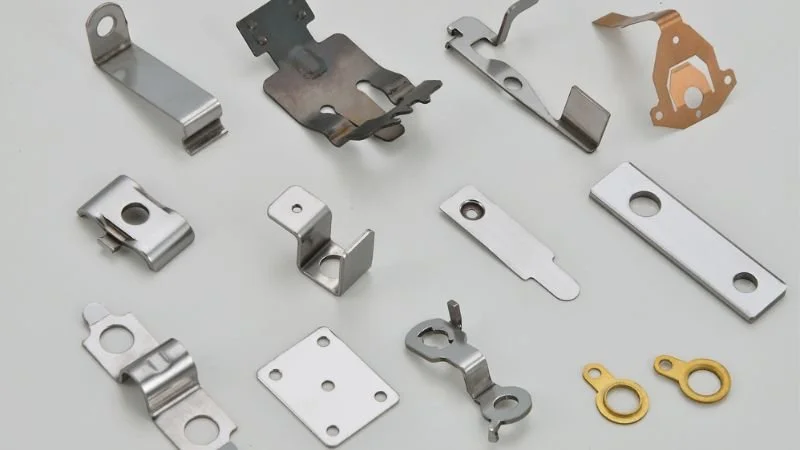

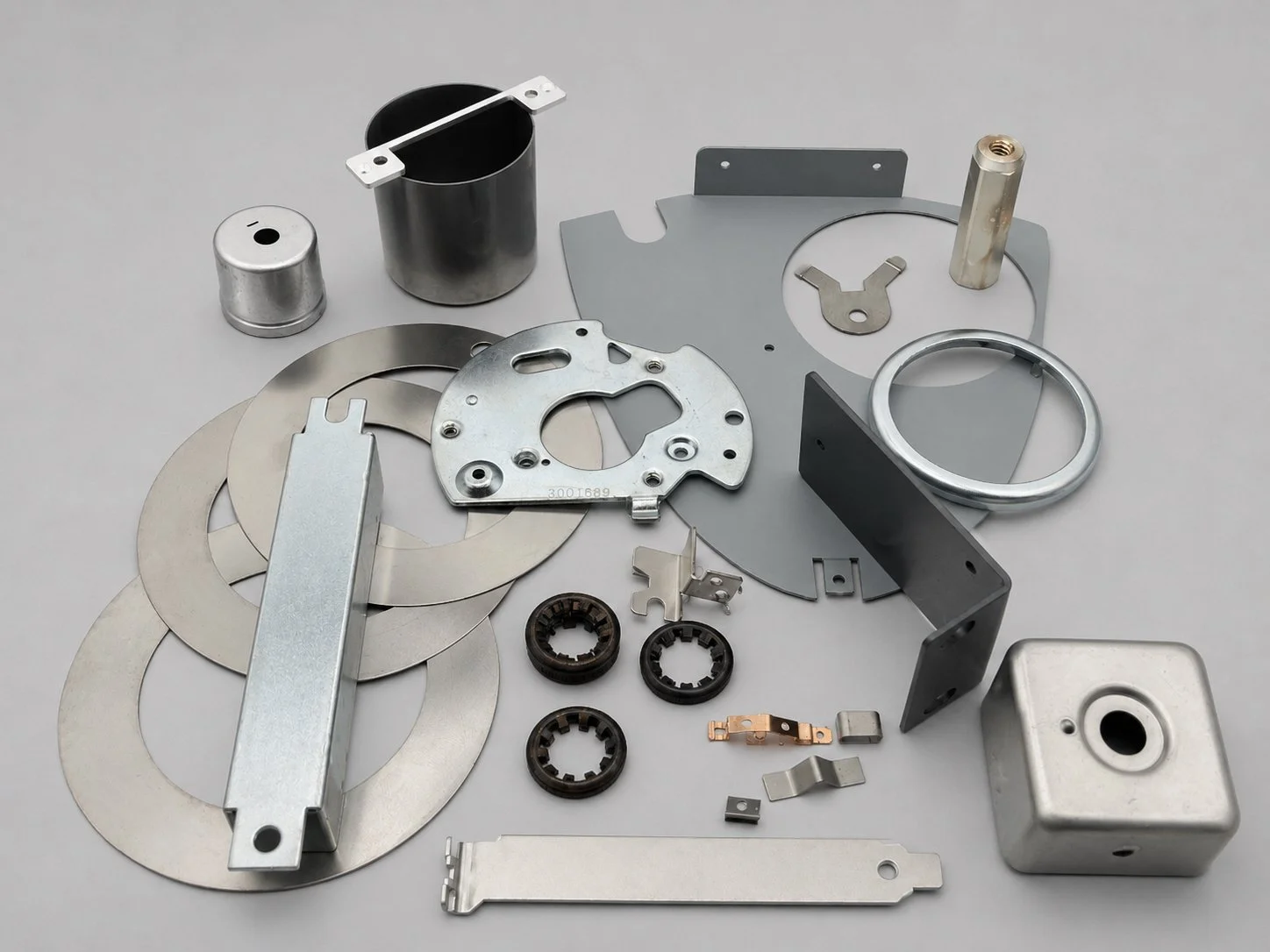

The HAPCO Group is a one-stop shop for computer brackets and metal stampings. Since 1994, we’ve designed, manufactured, and shipped over 10 million parts for companies across the electronics industry. We produce standard, modified, and fully custom configurations to meet precise specifications.
Skip the catalog search.
Send us your files directly. → Hapco@earthlink.net
No two brackets are the same. With more than 15,000 designs completed, we’ve learned that starting with your drawings leads to better outcomes and faster turnaround.
Have a bracket in mind? Send us your drawings and we’ll identify an existing solution or design one to meet your requirements.

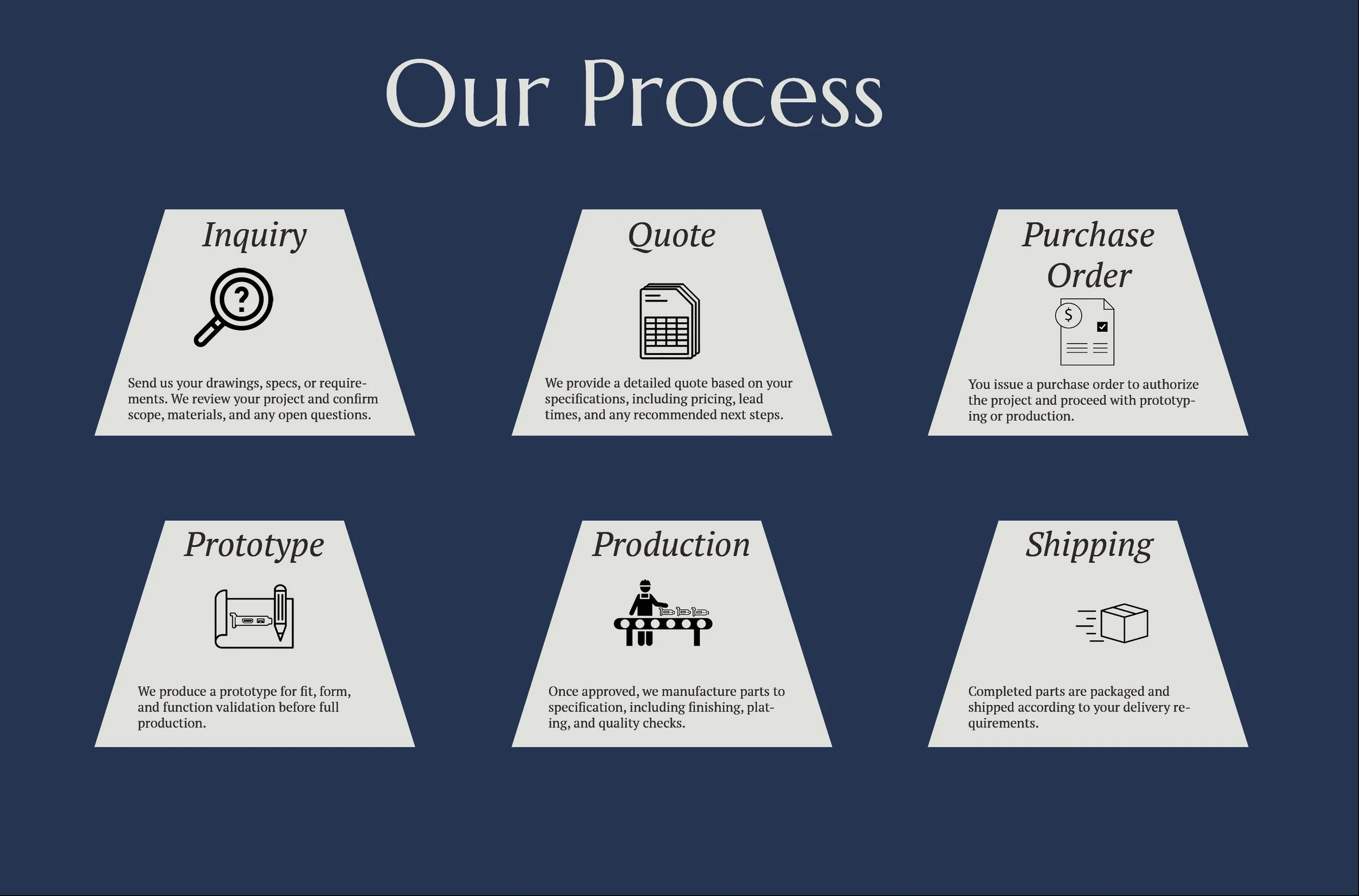

Interested in working with us? See our process below ↓
Want more Information on how we work? Click Here →
Featured Products

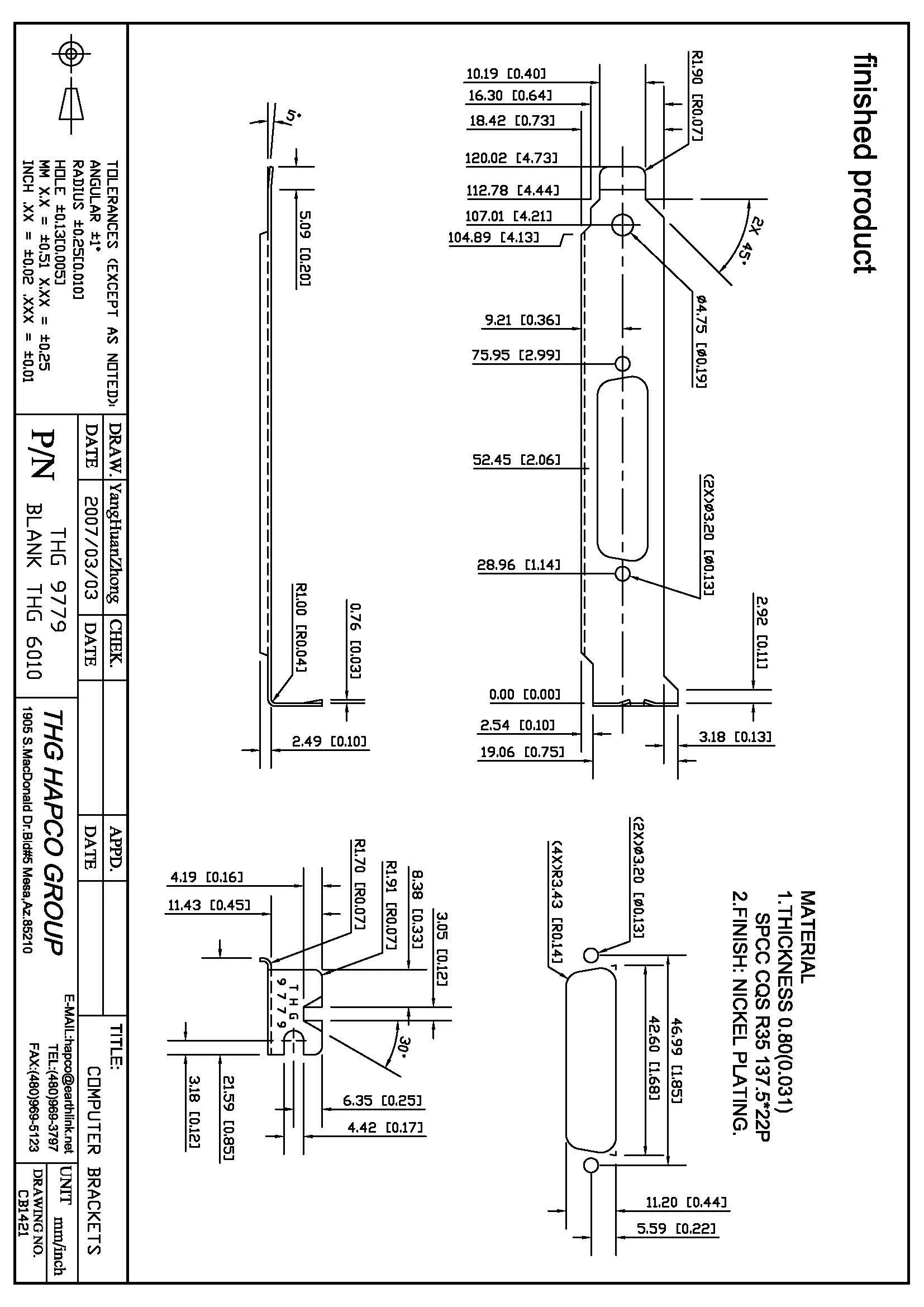

Part Number: THG-9779
Description:
The THG-9779 is a full-height PCI bracket designed to support DB9 (D-Sub 9-pin) connectors. Fabricated from SPCC CRS (Cold Rolled Steel) with a nickel-plated finish, this bracket offers reliable structural strength, corrosion resistance, and a professional appearance.
With a 5° mounting bend and precision-engineered hole alignment, the THG-9779 ensures secure integration with PCI and PCIe slots across industrial, OEM, and custom computing environments.
Specifications:
• Material: SPCC CQ3 R35 (Cold Rolled Steel)
• Thickness: 0.80 mm (0.031 in)
• Finish: Nickel Plated
• Height: 114.94 mm (4.525 in)
• Width: 18.42 mm (0.725 in)
• Connector Type: DB9 (D-Sub 9-pin)
• Mounting Bend: 5°
• Hole Diameter: 2.92 mm (0.115 in)
• Radius: R1.91 mm (0.075 in)
• Tolerance: ±0.05 mm
Applications:
Ideal for RS-232 serial communication cards, I/O expansion modules, and custom embedded PC enclosures requiring a full-height PCI interface. Designed for high repeatability, accuracy, and strength in industrial or OEM use.
Customization:
Custom cutouts, materials, or plating finishes available on request.
The THG-9779 is a precision full-height PCI bracket optimized for DB9 connectors. Built from SPCC cold-rolled steel, it provides a robust mounting platform with clean geometry and tight tolerances. The nickel-plated finish enhances corrosion resistance and appearance, making it ideal for professional manufacturing environments, custom PC builds, and OEM hardware assembly. With exact DB9 cutout alignment and a standard 5° bend, it ensures perfect mechanical fit and secure long-term installation.

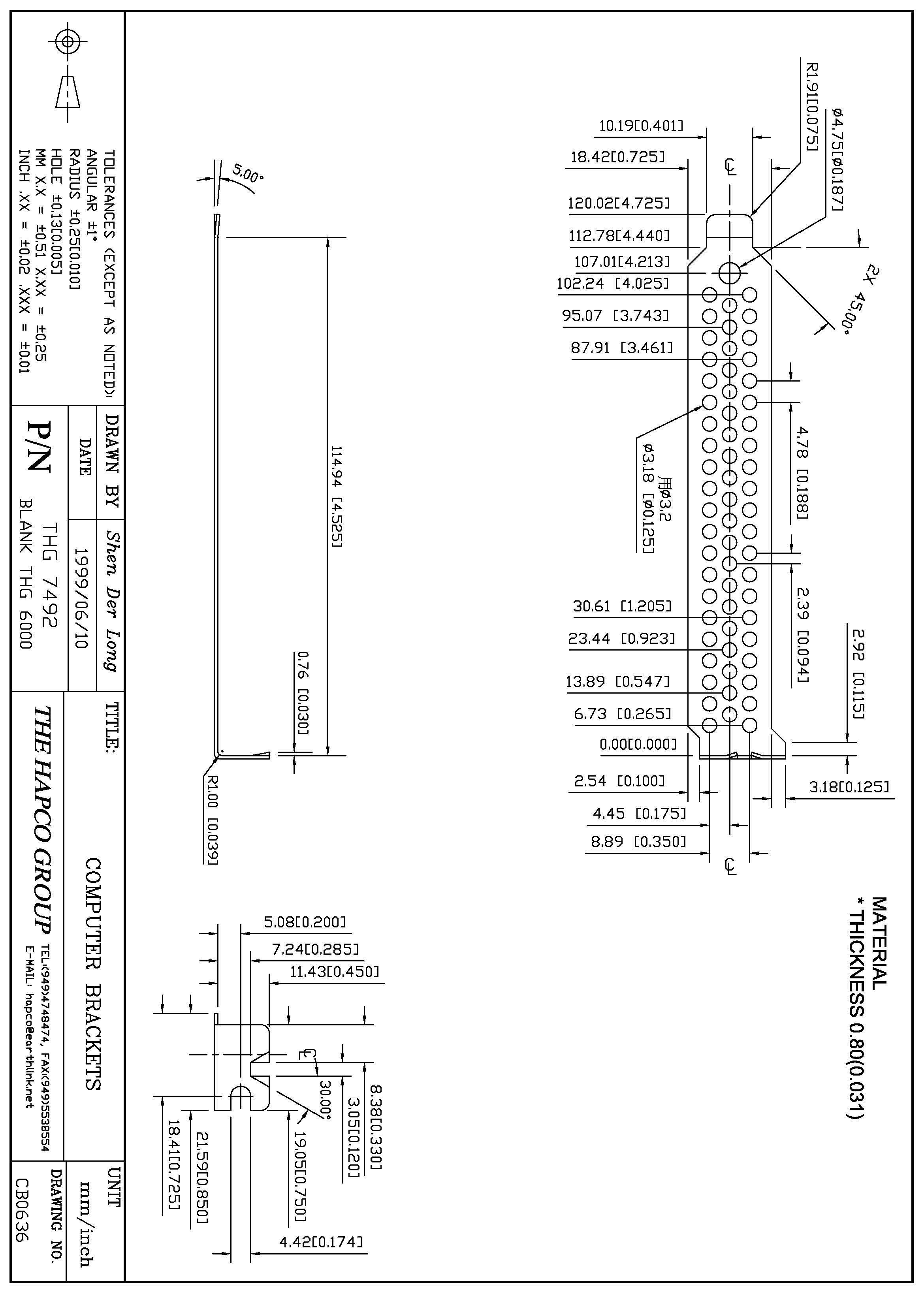

Part Number: THG-7492
Note: This site does not process orders online. Please use the 'Contact Us' to request a quote. Items in your cart are not processed.

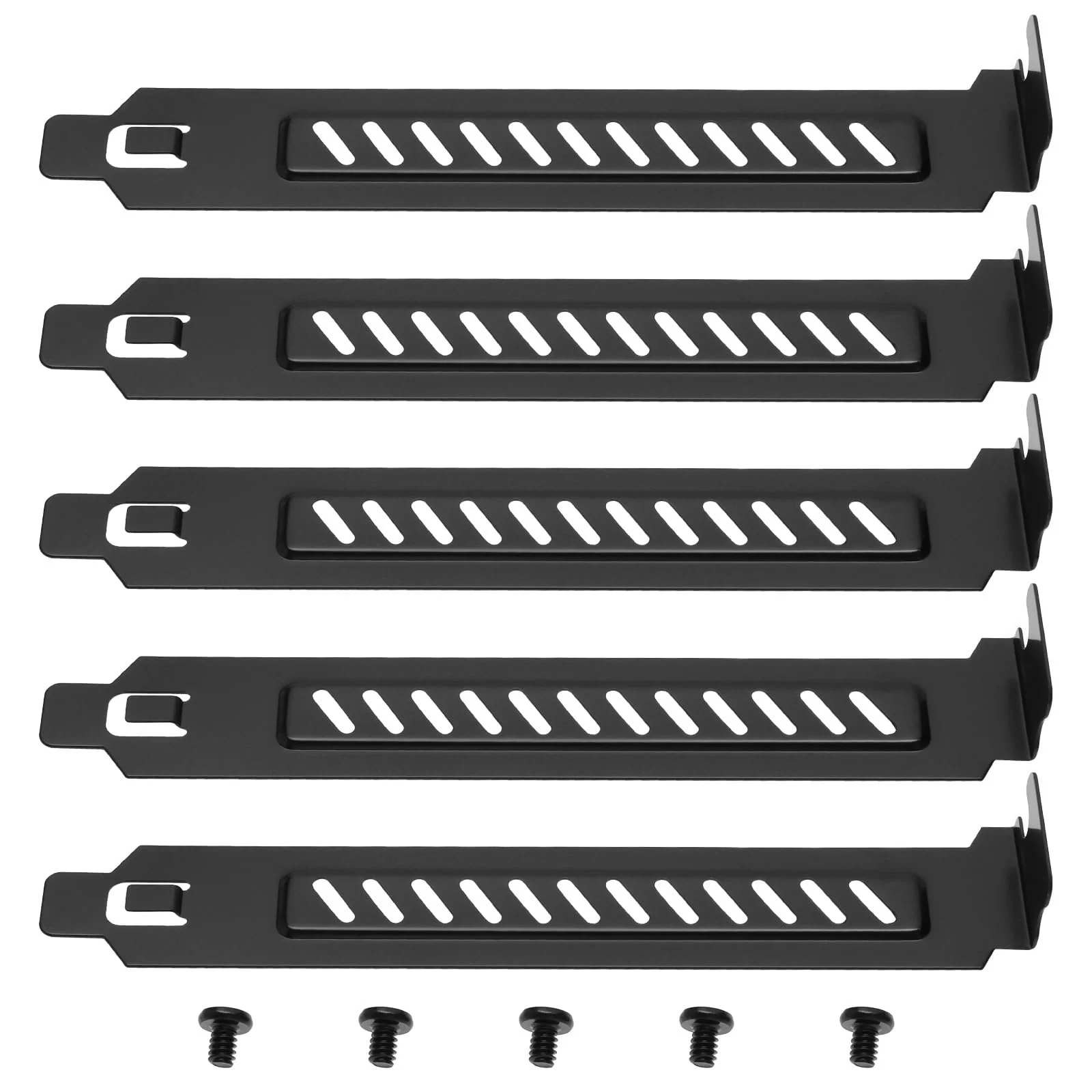

The THG-7492 is a full-height PCI bracket designed with a dense array of ventilation cutouts, allowing airflow through the PCI opening while protecting internal components. This bracket is commonly used for passive cooling on unused expansion slots, custom cards without I/O ports, or applications requiring improved chassis airflow.
Made from SPCC cold-rolled steel and finished with nickel plating, this bracket offers strength, corrosion resistance, and a clean, professional finish. The standard PCI screw tab and 5° alignment bend ensure correct seating inside any full-height computer chassis.
Specifications:(formatted to paste cleanly into Squarespace)
Material: SPCC CRS Steel (Cold Rolled Steel)
Thickness: 0.80 mm (0.031 in)
Finish: Nickel Plating
Bracket Type: Full-Height PCI
Connector Cutouts: Vent Pattern (multiple round vent holes)
Height: 114.94 mm (4.525 in)
Width: 18.42 mm (0.725 in)
Bend Angle: 5°
Tolerance: ±0.05 mm
Applications:
Ideal for:
Improving airflow in PCs, servers, and industrial enclosures
Covering unused PCI slots while allowing ventilation
Custom card builds with no external I/O
OEM and system integrator thermal management solutions
Customization:
Vent pattern density, laser cut shapes, plating finishes, and labeling available upon request.
The THG-7492 is a nickel-plated SPCC steel PCI bracket engineered with a dense ventilation pattern to enhance airflow through the chassis. The vent cutouts relieve heat buildup while maintaining a secure PCI slot cover, making it ideal for cooling, custom builds, and industrial system integration.
Part Number: THG-7775
Note: This site does not process orders online. Please use the 'Contact Us' to request a quote. Items in your cart are not processed.

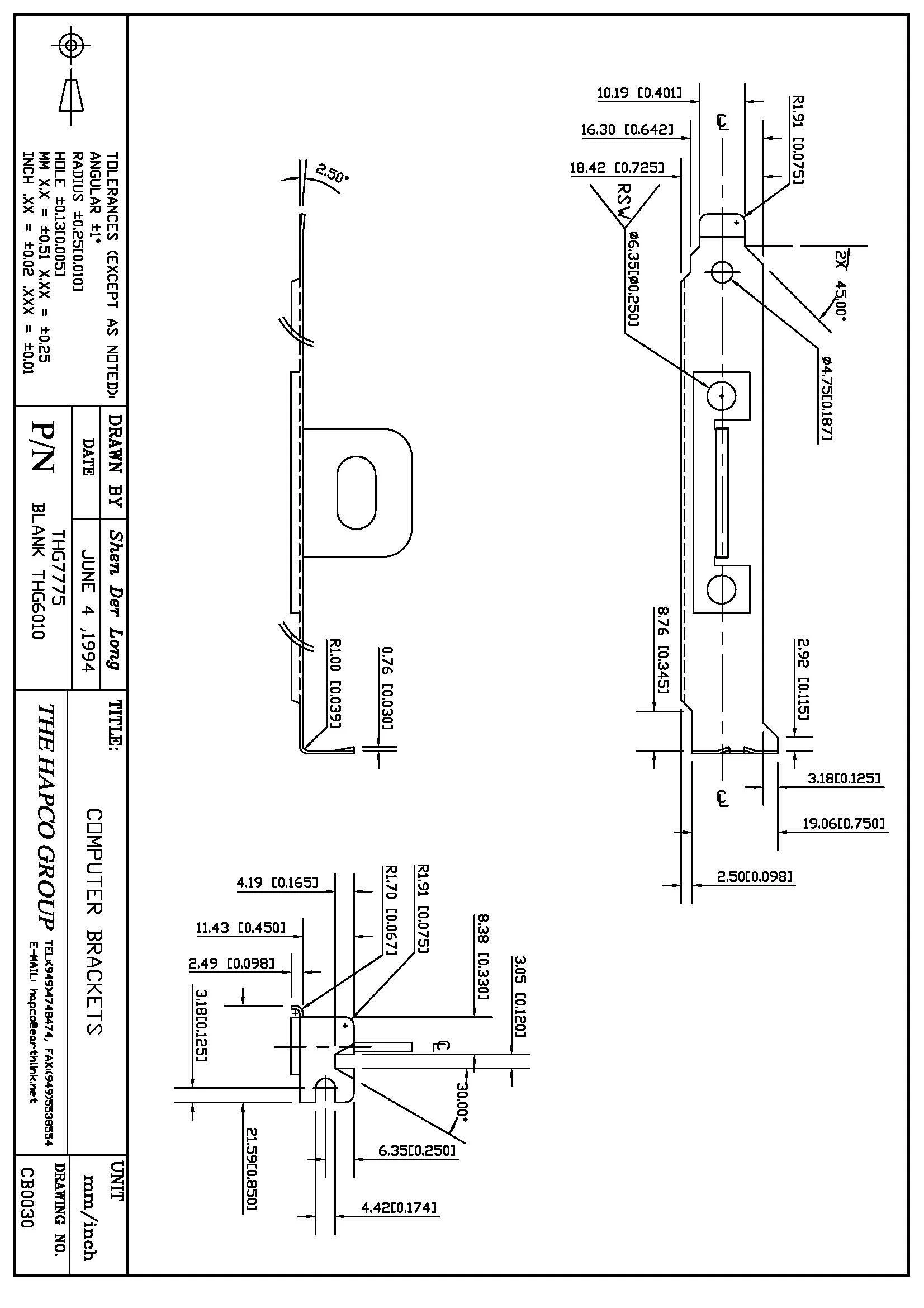

The THG-7775 is a full-height PCI bracket designed with a security lock slot cutout, used for securing devices via keyed cable locks (Kensington-style or equivalent). This bracket is ideal for OEMs, system integrators, and IT hardware suppliers who need a way to physically secure internal I/O or specialty expansion cards installed in PCs, kiosks, and industrial control cabinets.
Manufactured from cold-rolled CRS steel and finished with nickel plating, the bracket provides rigidity, corrosion resistance, and a clean professional finish. The slotted mounting tab and the 2.5° alignment bend ensure proper bracket seating and secure locking integration within a PCI chassis.
Specifications:(formatted for clean copy-paste into Squarespace)
Material: CRS Steel (Cold Rolled Steel)
Thickness: 0.80 mm (0.031 in)
Finish: Nickel Plating
Bracket Type: Full-Height PCI
Connector Cutout: Security Lock Slot (Kensington-style / anti-theft slot)
Height: 114.94 mm (4.525 in)
Width: 18.42 mm (0.725 in)
Alignment Bend: 2.5°
Tolerance: ±0.05 mm
Applications:
Ideal for locking and securing computer add-on cards in:
Kiosk and POS systems
Sensitive or restricted IT environments
Public-facing PC installations
OEM expansion modules requiring theft deterrence
Customization:
Custom cutouts, labeling, plating options, and alternate security patterns available.
The THG-7775 is a nickel-plated CRS steel PCI bracket engineered with a Kensington-style lock slot, enabling physical security of expansion cards and internal hardware. With precise slot geometry and a 2.5° seating bend, this bracket provides secure mechanical anchoring for anti-theft locking solutions in kiosk, POS, and commercial system builds.
Part Number: THG-7421
Note: This site does not process orders online. Please use the 'Contact Us' to request a quote. Items in your cart are not processed.

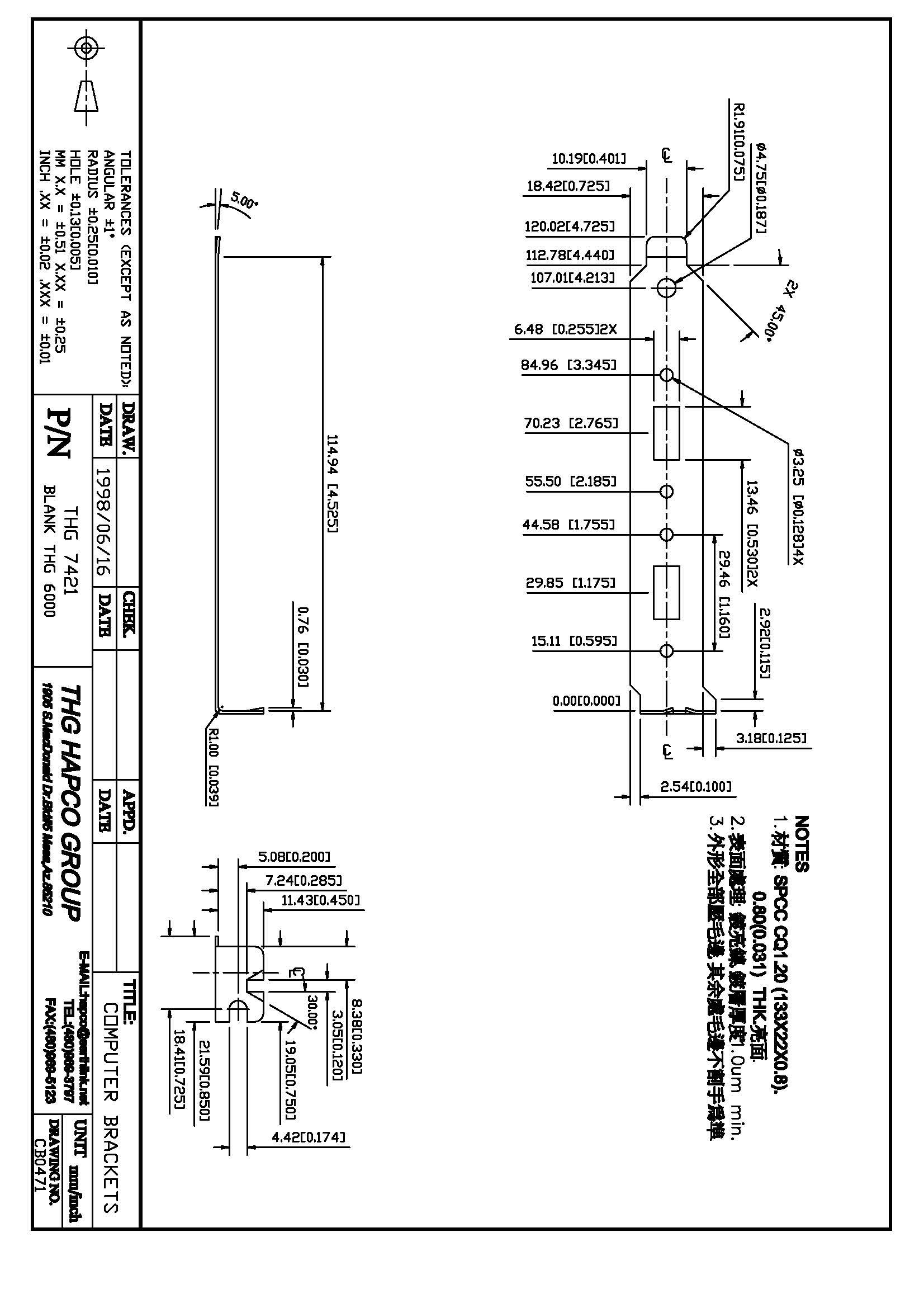

The THG-7421 is a full-height PCI bracket designed for a USB rectangular connector cutout (commonly used for standard USB Type-A panel mount connectors). This bracket is ideal for external USB access from expansion cards, breakout boards, custom PC builds, and industrial control modules requiring USB connectivity at the rear of a chassis.
Made from SPCC cold-rolled steel with a nickel-plated finish, this bracket offers durability, corrosion resistance, and a clean, professional appearance. The design incorporates the PCI-standard screw tab and a 5° mounting bend to ensure proper seating and alignment inside any full-height PCI slot.
Specifications:(formatted for copy/paste into Squarespace)
Material: SPCC CRS Steel (Cold Rolled Steel)
Thickness: 0.80 mm (0.031 in)
Finish: Nickel Plating
Bracket Type: Full-Height PCI
Connector Cutout: USB (Rectangular USB Type Connector)
Height: 114.94 mm (4.525 in)
Width: 18.42 mm (0.725 in)
Bend Angle: 5°
Tolerance: ±0.05 mm
Applications:
Ideal for USB expansion modules, custom PC I/O, motherboard breakout adapters, industrial systems, and USB data access panels.
Customization:
Custom engraving, plating options, and alternate connector layouts available upon request.
The THG-7421 is a precision full-height PCI bracket engineered with a rectangular USB connector cutout. Built from nickel-plated SPCC steel, it provides secure mounting, proper alignment, and professional-grade durability for OEM, industrial, and custom PC I/O panel applications.
