THG 7547 Full-Height PCI Bracket – Quad BNC Cutouts – Nickel-Plated SPCC Steel

Part Number: THG-7547

Note: This site does not process orders online. Please use the 'Contact Us' to request a quote. Items in your cart are not processed.

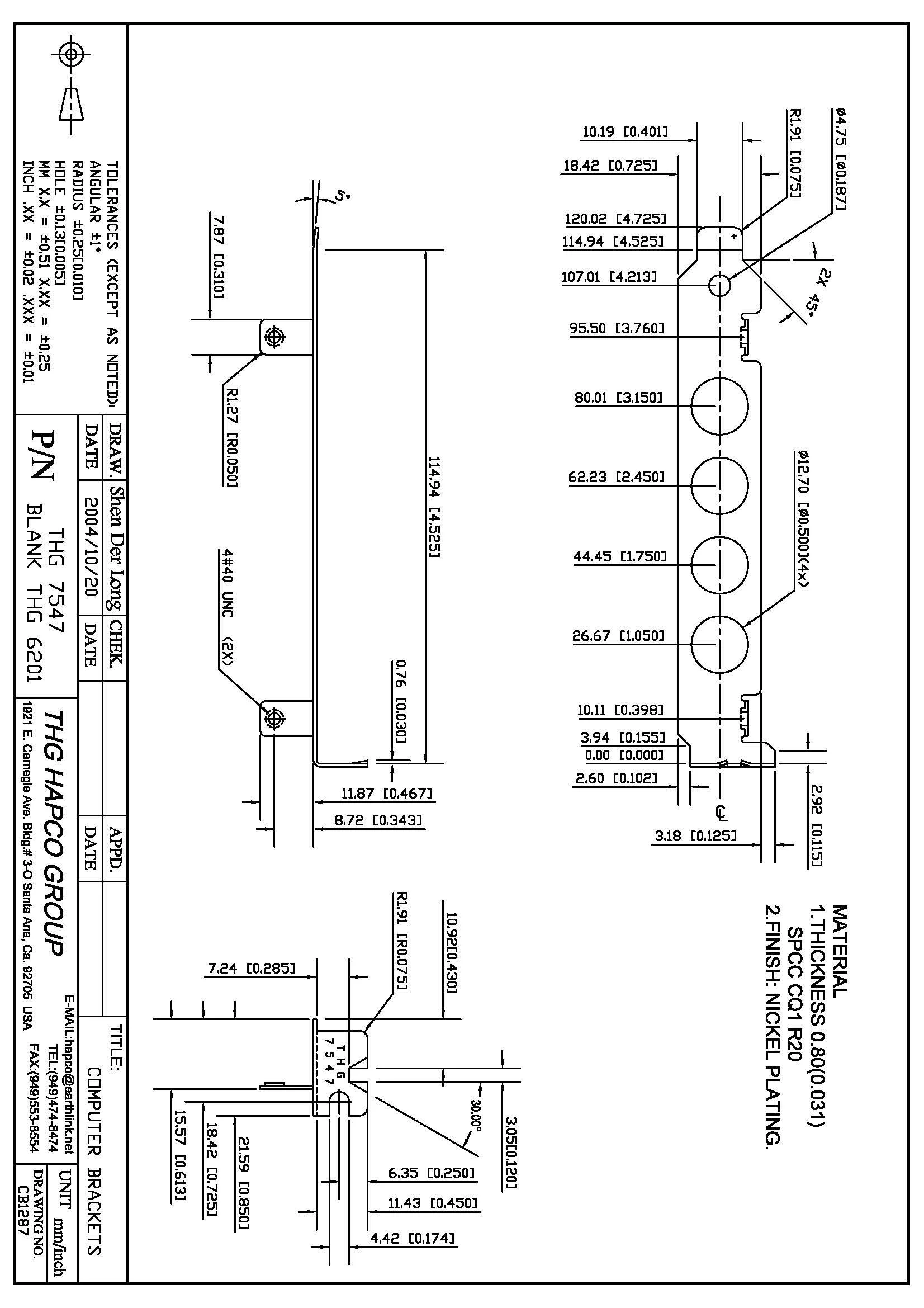

The THG-7547 is a full-height PCI bracket designed with four circular BNC connector cutouts, used for coaxial/RF connections. BNC connectors are standard in broadcast equipment, RF test systems, CCTV camera interfaces, oscilloscopes, and industrial signal monitoring hardware.

Built from SPCC cold-rolled steel and finished in nickel plating, this bracket offers durability, strength, and corrosion resistance while maintaining a clean, professional appearance. The design includes the standard PCI mounting tab and a 5° PCI alignment bend to ensure proper seating in any full-height computer chassis.

Specifications:(copy/paste friendly into Squarespace)

• Material: SPCC CRS Steel (Cold Rolled Steel)

• Thickness: 0.80 mm (0.031 in)

• Finish: Nickel Plating

• Bracket Type: Full-Height PCI

• Connector Cutouts: BNC (4x round coaxial/BNC openings)

• Height: 114.94 mm (4.525 in)

• Width: 18.42 mm (0.725 in)

• Bend Angle: 5°

• Tolerance: ±0.05 mm

Applications:
Ideal for RF coaxial interfaces, CCTV video hardware, broadcast/monitoring systems, oscilloscopes, test lab equipment, and custom I/O projects requiring multiple BNC connectors.

Customization:
Optional part labeling/marking, alternate plating finishes, and custom cutout layouts available upon request.

The THG-7547 is a nickel-plated SPCC steel PCI bracket designed for quad BNC connectors. Precision circular cutouts and a standard PCI mounting tab ensure secure connector mounting, while the 5° chassis seating bend guarantees proper alignment for RF, coaxial, and broadcast communication hardware.
