THG 6307 Full-Height Metal Bracket – #4-40 UNC Holes – Nickel-Plated SPCC Steel

Part Number: THG-6307 BL

Note: This site does not process orders online. Please use the 'Contact Us' to request a quote. Items in your cart are not processed.

Description:
The THG-6307 BL is a full-height computer bracket manufactured from SPCC cold-rolled steel and nickel plated for corrosion resistance. This bracket features two #4-40 UNC tapped mounting holes and precise cutouts required for chassis or connector integration. A formed bend of 5° is specified for proper alignment with standard computer chassis mounting.

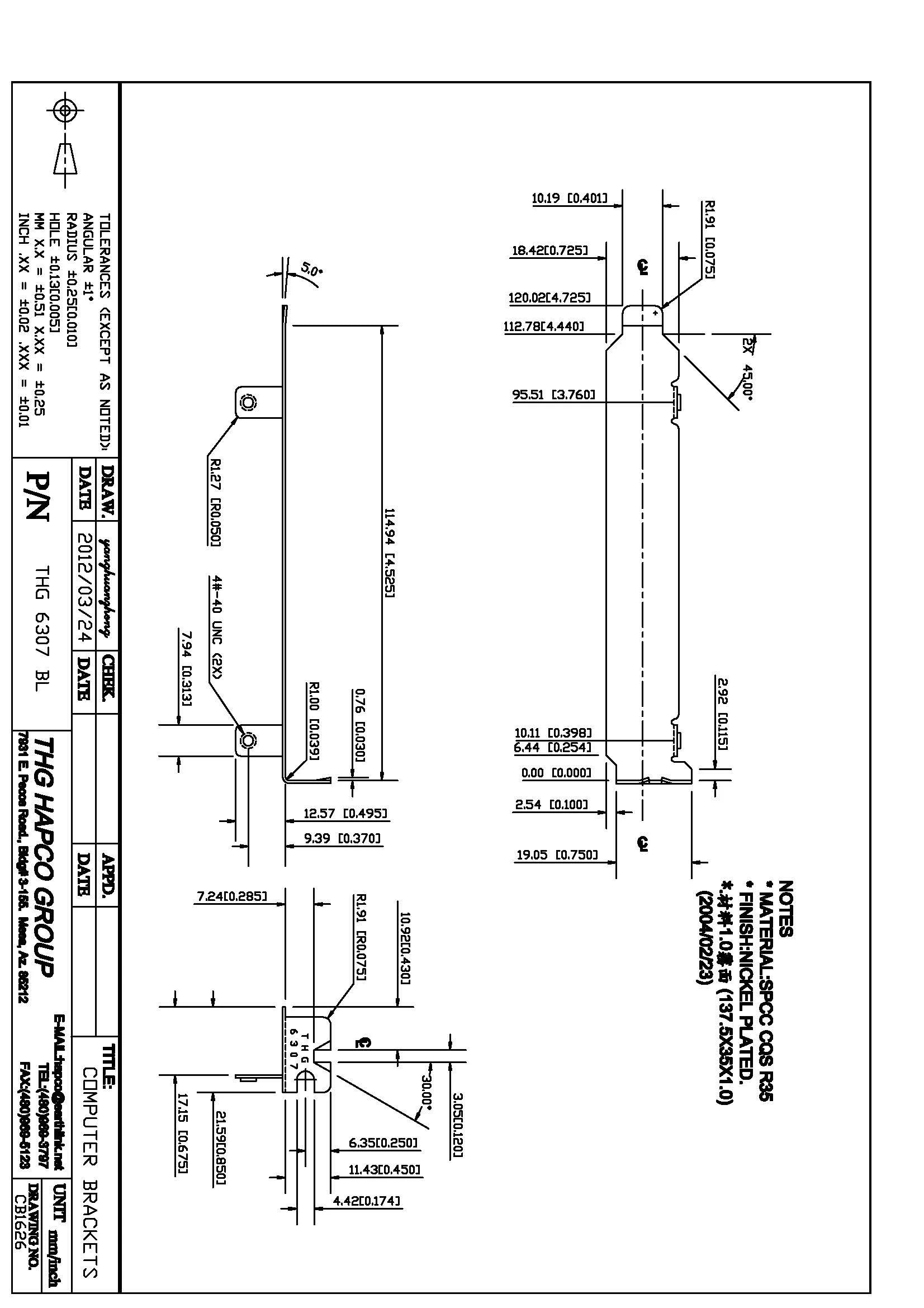

Specifications (from drawing):

• Material: SPCC CQ5 R35 (Cold Rolled Steel)

• Thickness: 1.0 mm (0.039 in)

• Finish: Nickel Plated

• Height: 114.94 mm (4.525 in)

• Tapped Holes: #4-40 UNC (2X)

• Bend Angle: 5°

• Cutout and hole geometry per engineering drawing

Applications:
Used for mounting components and connectors into full-height computer or equipment chassis. Suitable for industrial hardware mounting, OEM assemblies, and I/O bracket replacement.

The THG-6307 BL is a nickel-plated SPCC steel computer bracket featuring two #4-40 UNC tapped mounting holes, full-height profile, precision slot geometry, and a 5° bend for accurate alignment during installation. Designed for dependable structural support in computer or OEM chassis applications.
