THG 7639 Full-Height PCI Bracket – DVI Cutout – Nickel-Plated CRS Steel

Part Number: THG-7639

Note: This site does not process orders online. Please use the 'Contact Us' to request a quote. Items in your cart are not processed.

The THG-7639 is a full-height PCI bracket designed with a precision DVI connector cutout, supporting standard DVI panel-mount interfaces used in graphics display output and video transmission systems. DVI connectors are common in video capture devices, GPU output panels, industrial display systems, and custom breakout modules.

Made from cold-rolled CRS steel and finished with durable nickel plating, this bracket delivers rigidity, corrosion resistance, and a professional appearance suitable for both commercial and industrial deployment. The bracket includes the PCI-standard screw tab and a 5° alignment bend, ensuring correct seating and stable connector mounting inside a PCI chassis.

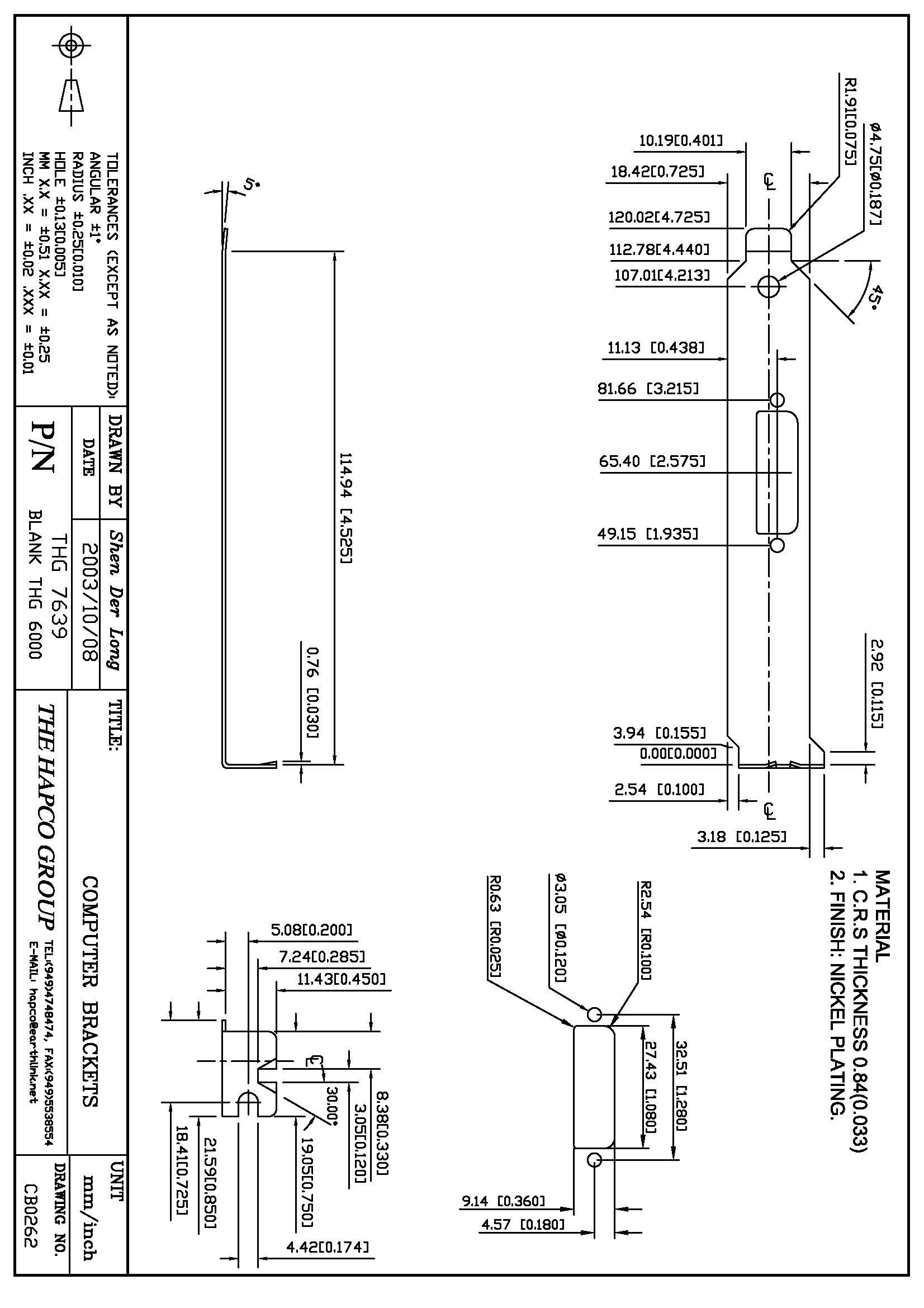

Specifications:(formatted to paste cleanly into Squarespace)

• Material: CRS Steel (Cold Rolled Steel)

• Thickness: 0.84 mm (0.033 in)

• Finish: Nickel Plating

• Bracket Type: Full-Height PCI

• Connector Cutout: DVI (Digital Visual Interface)

• Height: 114.94 mm (4.525 in)

• Width: 18.42 mm (0.725 in)

• Bend Angle: 5°

• Tolerance: ±0.05 mm

Applications:
Ideal for graphics card I/O, video capture hardware, industrial display output systems, and custom DVI expansion modules requiring a PCI-mounted interface.

Customization:
Engraving, alternate plating options (zinc, nickel, oxide), or custom cutout patterns available upon request.

The THG-7639 is a nickel-plated CRS steel PCI bracket engineered for DVI panel-mount connectors. With precise cutout geometry, a PCI screw tab, and a 5° seating bend, this bracket ensures secure mounting and reliable alignment for display, video capture, and OEM hardware applications.
