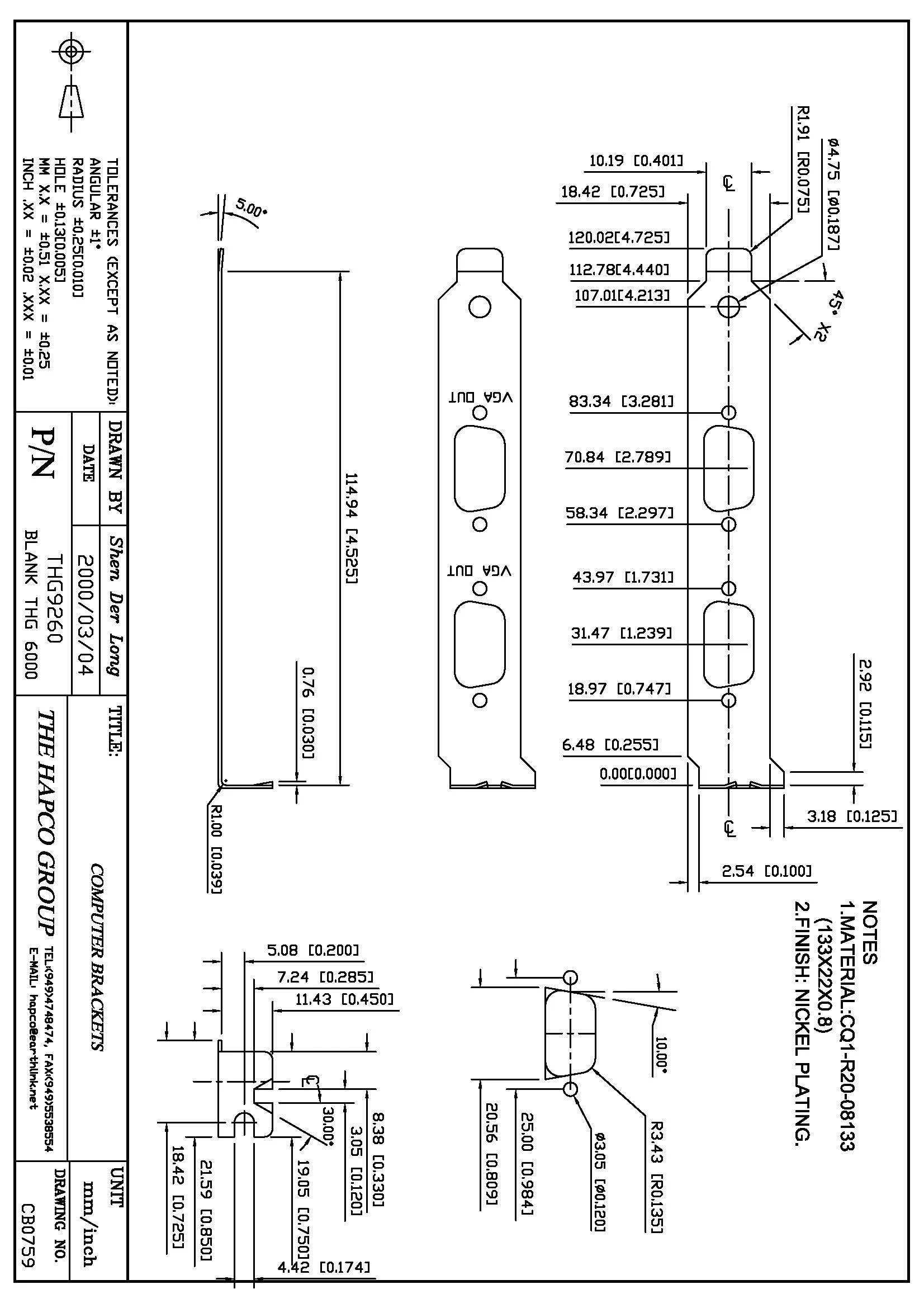

THG 9260 Full-Height PCI Bracket – Dual VGA Cutouts – Nickel-Plated Steel

Part Number: THG-9260

Description:
Full-height PCI bracket featuring two VGA cutouts arranged vertically for dual-output video cards or multi-display industrial systems. Made from SPCC CQ1 cold-rolled steel (0.80 mm / 0.031 in thick) and nickel-plated for corrosion resistance and a professional finish. Formed with a 5° bend and precision-machined holes for consistent alignment in standard PCI and PCIe chassis.

Specifications:
• Material: SPCC CQ1 Steel
• Thickness: 0.80 mm (0.031 in)
• Finish: Nickel Plated
• Height: 114.94 mm (4.525 in)
• Width: 18.41 mm (0.725 in)
• Connector Type: Dual VGA (D-Sub 15)
• Mounting Tab: 5° Bend
• Hole Diameter: 2.92 mm (0.115 in)
• Tolerance: ±0.05 mm

Applications:
Designed for graphics, display, and industrial systems requiring two VGA ports. Commonly used in multi-monitor workstations, embedded systems, and control centers where dual video outputs are needed.

Customization:
Alternate cutouts (HDMI, DisplayPort, USB, etc.) and custom finishes available upon request.
