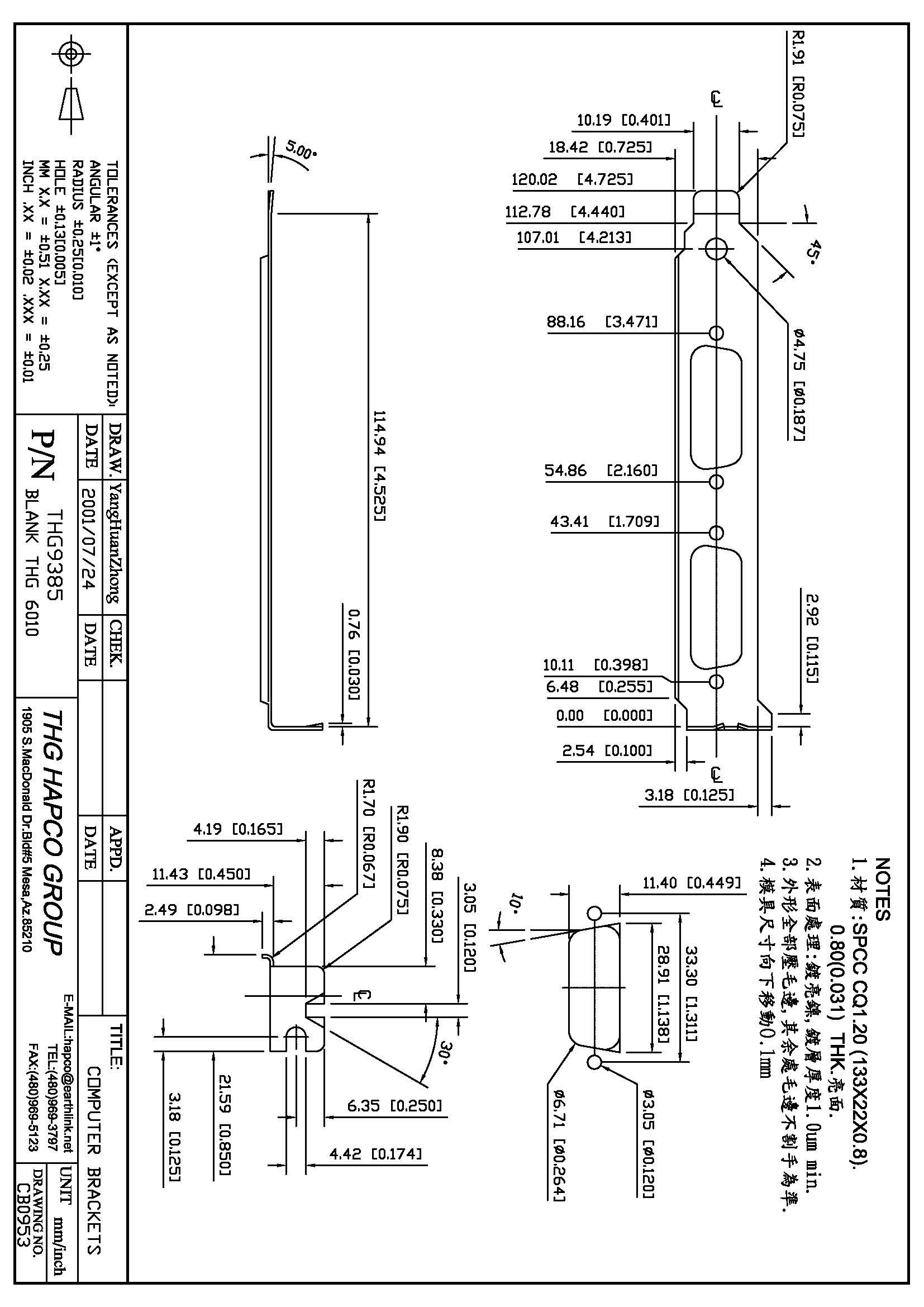

Part Number: THG-9385
Description:
Full-height PCI bracket featuring two DB9 (D-Sub 9-pin) cutouts aligned vertically for dual-port serial or communication cards. Fabricated from SPCC CQ1 cold-rolled steel at 0.80 mm (0.031 in) thickness and finished in nickel plating for durability and corrosion resistance. Includes a 5° mounting bend and precisely machined edges to ensure proper fit and reliable connector alignment within PCI and PCIe chassis.
Specifications:
• Material: SPCC CQ1 Steel
• Thickness: 0.80 mm (0.031 in)
• Finish: Nickel Plated
• Height: 114.94 mm (4.525 in)
• Width: 18.41 mm (0.725 in)
• Connector Type: Dual DB9 (D-Sub 9)
• Mounting Tab: 5° Bend
• Hole Diameter: 2.92 mm (0.115 in)
• Tolerance: ±0.05 mm
Applications:
Ideal for dual-port RS-232 or RS-485 communication cards, embedded control modules, and industrial automation interfaces. Designed for manufacturers or integrators requiring dependable bracket precision and long-term reliability.
Customization:
Alternate connector patterns, finishes, or plating options available upon request.
Compared to your THG-9360 (triple DB9) and THG-9025 (single DB9),
the THG-9385 is the dual-port variant, optimized for two DB9 connectors — providing the perfect middle-ground for multi-port serial configurations while maintaining a slim, standard PCI profile.
