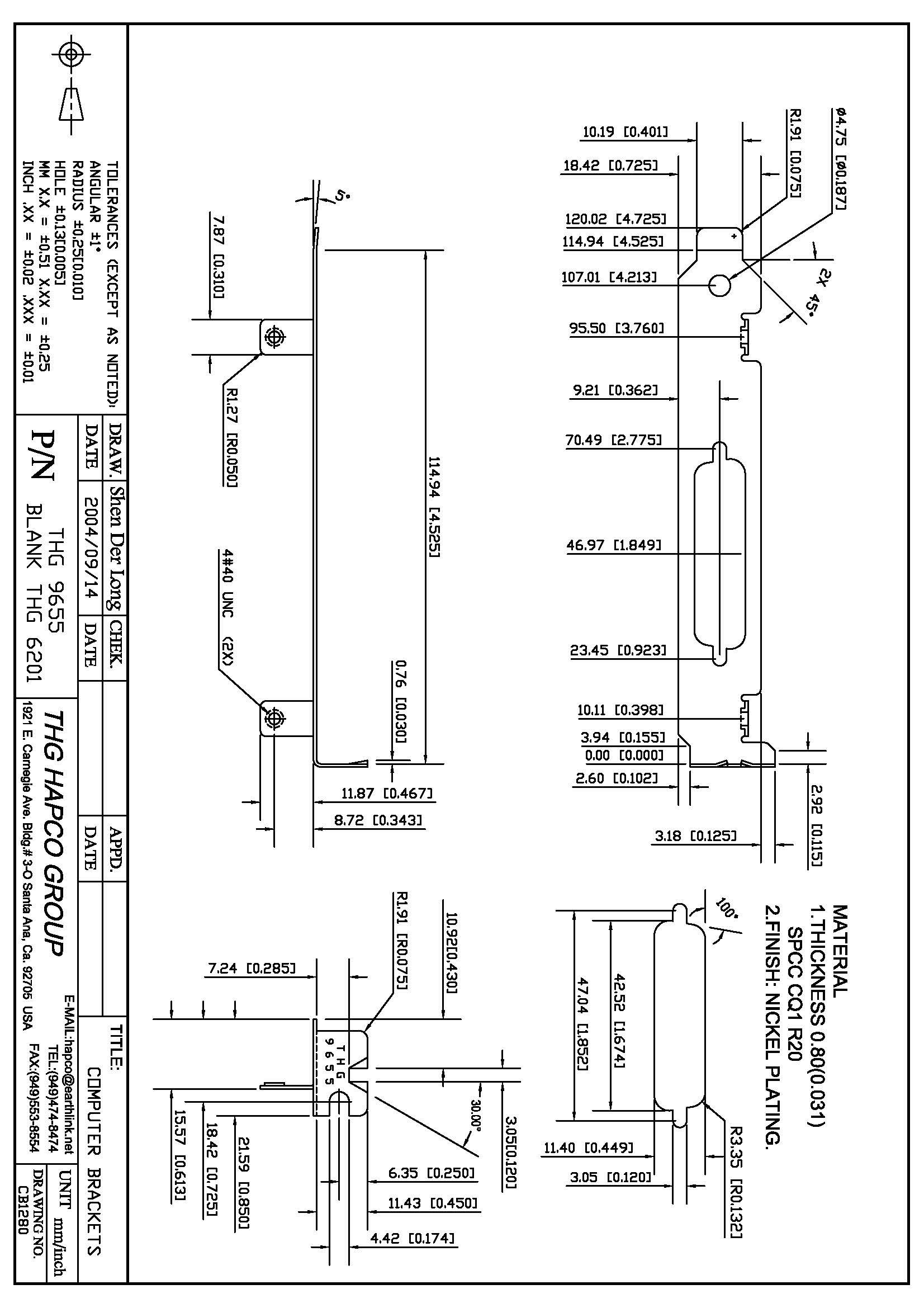

Part Number: THG-9655
Description:
Full-height PCI bracket engineered for DB15 connectors, featuring #4-40 UNC threaded inserts for direct screw fastening. Constructed from SPCC CQ1 cold-rolled steel at 0.80 mm (0.031 in) thickness and finished in nickel plating for superior corrosion resistance and professional-grade appearance. This bracket includes a 5° mounting bend and precision-machined holes for consistent fit in standard PCI and PCIe chassis.
Specifications:
• Material: SPCC CQ1 Steel
• Thickness: 0.80 mm (0.031 in)
• Finish: Nickel Plated
• Height: 114.94 mm (4.525 in)
• Width: 18.41 mm (0.725 in)
• Connector Type: DB15 (D-Sub 15)
• Mounting Tab: 5° Bend
• Threaded Inserts: #4-40 UNC (2x)
• Hole Diameter: 2.92 mm (0.115 in)
• Tolerance: ±0.05 mm
Applications:
Designed for VGA, game port, or industrial DB15 connectors, providing secure and vibration-resistant mounting for OEMs, PC manufacturers, and industrial system integrators. Threaded inserts simplify installation, eliminating loose nuts and ensuring a professional finish.
Customization:
Alternate connector patterns, materials, or surface finishes available upon request.
THG-9655 is the threaded-insert variant of the DB15 bracket family—similar to THG-9591 (DB25) but configured for 15-pin connectors. It’s ideal for VGA or analog-signal interfaces where dependable, vibration-resistant fastening is required.
