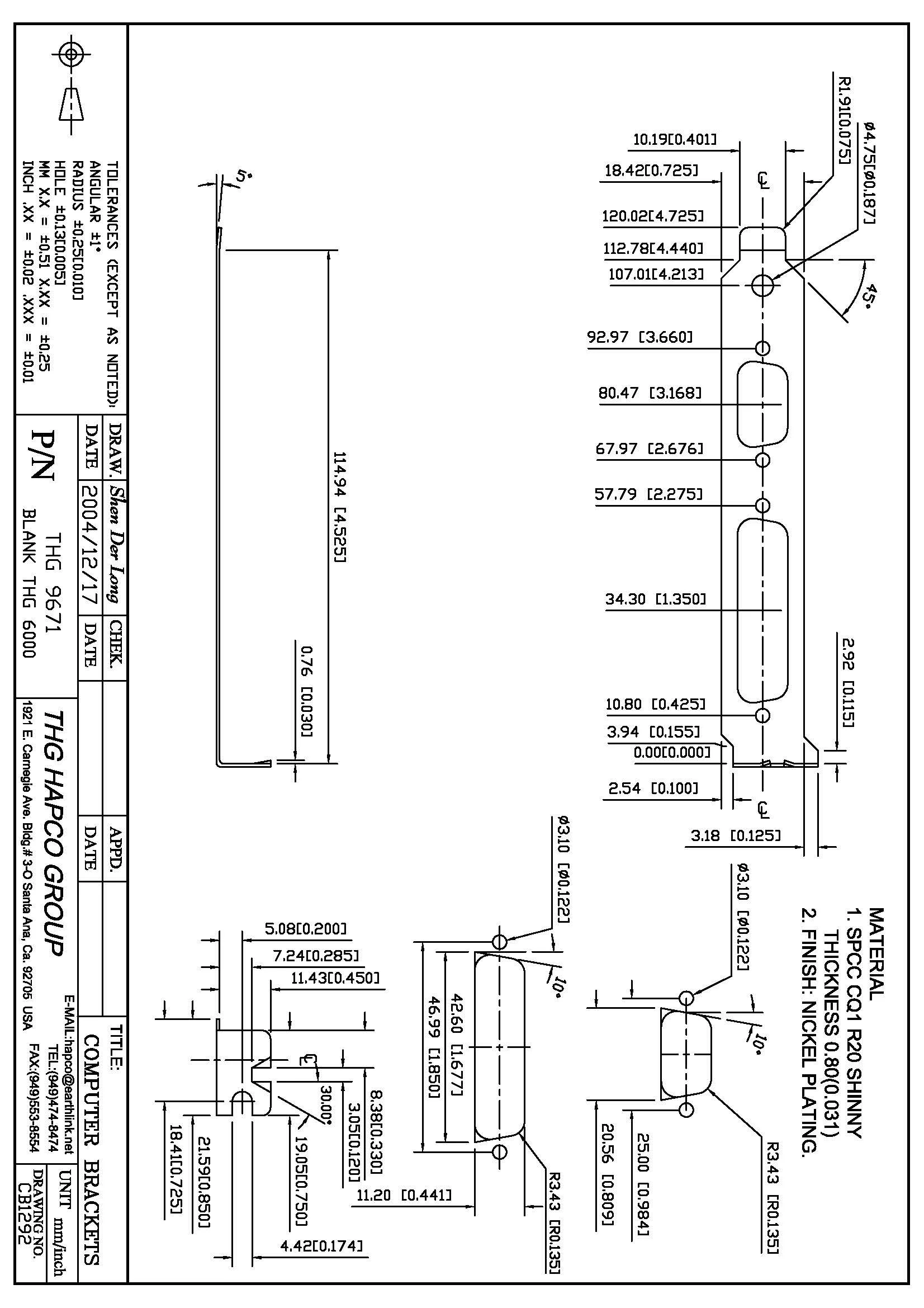

Part Number: THG-9671
Description:
Full-height PCI bracket designed for DB25 (D-Sub 25-pin) connectors. Fabricated from SPCC CQ1 cold-rolled steel with a 0.80 mm (0.031 in) thickness and finished in nickel plating for enhanced durability and corrosion resistance.
The THG-9671 features a 5° mounting bend and precision-machined cutouts to ensure exact connector alignment with standard PCI and PCIe chassis slots. This bracket conforms to industry mechanical specifications, making it ideal for OEM integration, prototyping, or repair applications.
Specifications:
• Material: SPCC CQ1 Steel (Shiny Finish)
• Thickness: 0.80 mm (0.031 in)
• Finish: Nickel Plated
• Height: 114.94 mm (4.525 in)
• Width: 18.42 mm (0.725 in)
• Connector Type: DB25 (D-Sub 25-pin)
• Mounting Bend: 5°
• Hole Diameter: 2.92 mm (0.115 in)
• Tolerance: ±0.05 mm
Applications:
Commonly used for parallel ports, RS-232, and industrial I/O expansion cards, providing a precise and professional mounting solution. Trusted by OEMs, system builders, and integrators for its consistent quality and fit.
Customization:
Alternate cutouts, finishes, or material options available upon request.
The THG-9671 is HAPCO’s standard DB25 bracket — a refined version of the DB25 series designed for maximum compatibility across PCI and PCIe chassis. It delivers consistent alignment and durability for industrial, commercial, and OEM builds. Unlike threaded variants, it uses clean precision holes for connector-mounting flexibility, making it ideal for mass production and fast assembly without added hardware.
