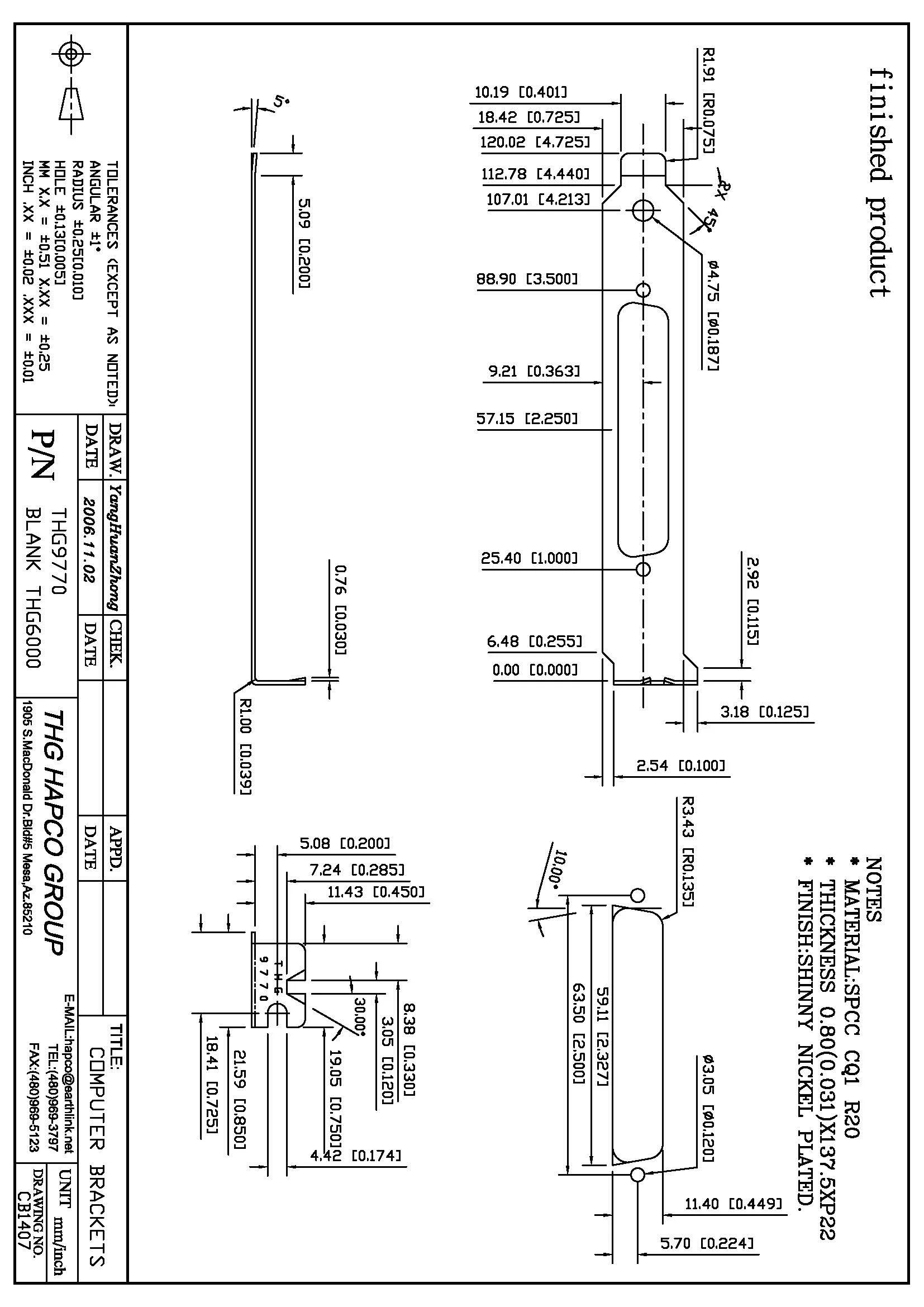

Part Number: THG-9770
Description:
The THG-9770 is a full-height PCI bracket designed for DB9 (D-Sub 9-pin) connectors, precision-engineered for compatibility with standard PCI and PCIe expansion slots. Constructed from SPCC CQ1 R20 cold-rolled steel, this bracket features a 0.80 mm (0.031 in) material thickness and a bright nickel-plated finish for superior corrosion resistance and a professional aesthetic.
Its 5° mounting bend ensures accurate alignment and easy integration into both OEM production and custom retrofit builds. The bracket provides consistent hole spacing and cutout geometry to guarantee a secure, vibration-resistant fit.
Specifications:
• Material: SPCC CQ1 R20 Cold-Rolled Steel
• Thickness: 0.80 mm (0.031 in)
• Finish: Shiny Nickel Plated
• Height: 114.94 mm (4.525 in)
• Width: 18.42 mm (0.725 in)
• Connector Type: DB9 (D-Sub 9-pin)
• Mounting Bend: 5°
• Hole Diameter: 2.92 mm (0.115 in)
• Radius: R1.91 mm (0.075 in)
• Tolerance: ±0.05 mm
Applications:
Ideal for RS-232 serial communication cards, data acquisition modules, and embedded computing systems. The THG-9770 provides reliable connector support for custom-built PCs, industrial controllers, and OEM I/O products.
Customization:
Custom cutouts, plating finishes, or special dimensions available upon request.
The THG-9770 is a premium full-height PCI bracket featuring a DB9 cutout and shiny nickel plating for professional appearance and corrosion protection. Precision-engineered from SPCC CQ1 R20 steel, this bracket ensures excellent dimensional stability and durability for repeated installations. Its 5° bend and precisely placed connector slot make it an ideal fit for high-quality RS-232 and custom I/O interface assemblies in OEM, industrial, or embedded applications.
